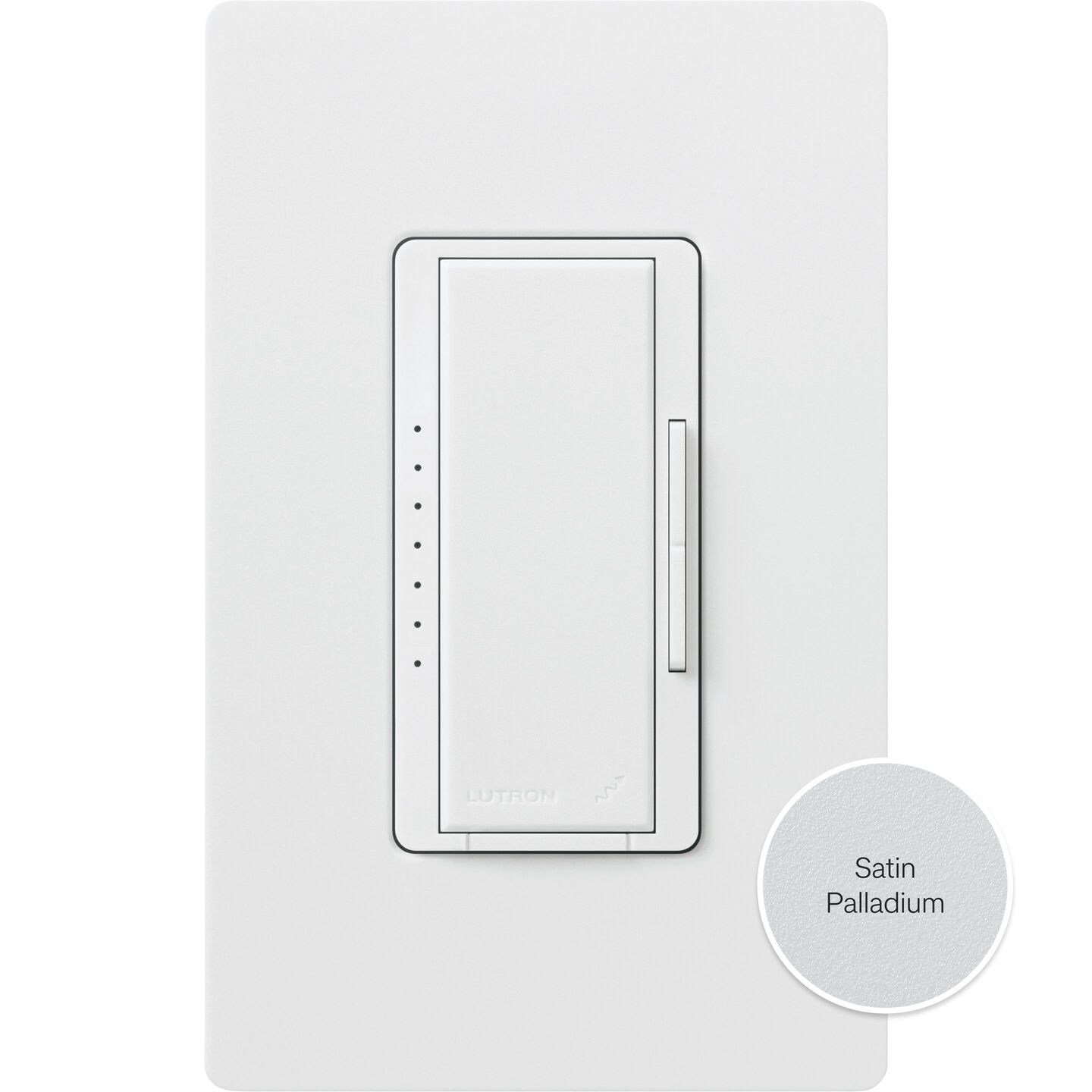

Vive Maestro LED+ Dimmer
Model # MRF2S-6CL-PD
Bring reliable wireless dimming to Vive systems with a tap switch, soft locator light, and multi-location capability.
Availability varies by country.
Configure
Model # MRF2S-6CL-PD
Product Details
Overview
The Maestro LED+ dimmer brings system-level control to individual lighting circuits through Vive integration. Designed for retrofit applications where no neutral wire is available, this dimmer controls LED, incandescent, or halogen bulbs on the same circuit. Advanced circuitry prevents the flicker and interference that can occur when multiple dimmers are installed in the same space. The tap switch turns lights on to preset levels, while the rocker provides precise dimming control. Features include delayed fade-to-off and customizable low-end trim adjustment. Compatible with multi-location installations using Maestro companion dimmers (MA-R or MSC-AD). Power failure memory automatically restores the previous dimming level after power interruptions. Includes a Front Accessible Service Switch (FASS) for safe lamp replacement. Clear Connect RF Technology provides reliable Vive communication for seamless integration with the broader control system. Wallplate sold separately.
- Rigorously tested across thousands of LED bulbs from major manufacturers to ensure flicker-free performance with no neutral wire required
- Controls up to 150W dimmable LED, 600W incandescent, or 250W Lutron Hi-lume LED driver loads
- Power failure memory automatically restores previous dimming level when power is interrupted
- Multi-location capable with Maestro companion dimmers (MA-R or MSC-AD) for control from additional locations
- Available in a variety of gloss and satin color options to match any décor with Claro wallplates and accessories
- Clear Connect RF Technology provides reliable Vive communication for seamless integration and system-level control
- 10 year warranty with product registration
One Dimmer
Coordinating Wall plate sold seperately
None
- No neutral wire required
Specifications & Documents
General Specifications
Color/Finish
Satin Palladiom
Style & Type
Decorator/Rocker
Tap Switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-Wall
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 year warranty with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150 W LED
600 W incandescent/halogen
