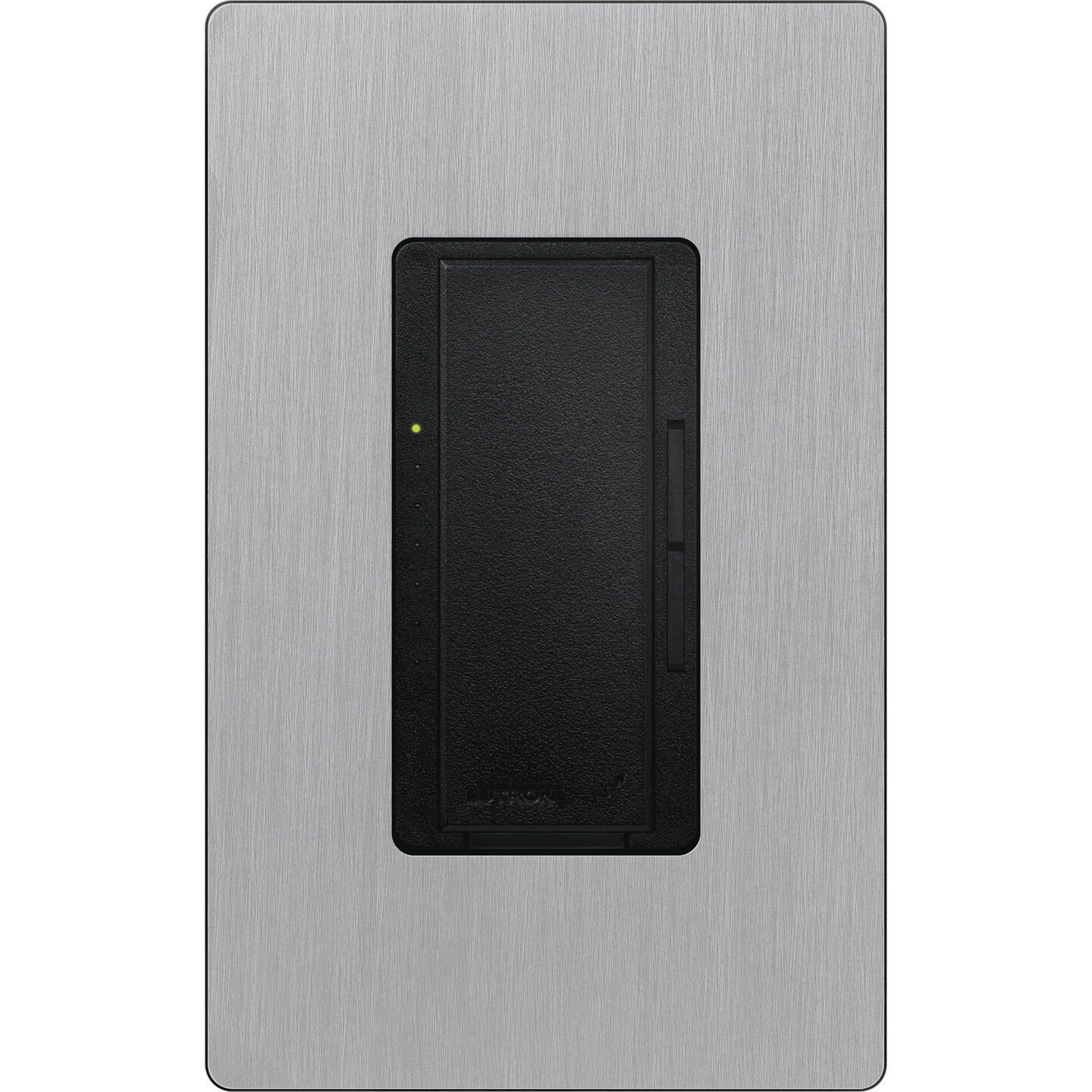

HomeWorks Maestro PRO LED+ Dimmer - Designer
Model # HQRD-PRO-SS
Control diverse lighting loads in HomeWorks systems with phase-selectable dimming to optimize performance for LED, ELV, MLV, and incandescent applications.
Availability varies by country.
Configure
Model # HQRD-PRO-SS
Product Details
Overview
The Maestro PRO LED+ dimmer brings system-level control to individual lighting circuits through HomeWorks integration. Featuring a Designer style with rounded corners and gloss and satin finishes, this dimmer coordinates seamlessly with other Designer controls throughout the home. Phase-selectable technology provides broad compatibility with high-efficiency lighting, automatically selecting optimal control method based on wiring configuration. Real-Time Illumination Stability Systems (RTISS) technology reduces flicker by compensating in real-time for incoming line voltage and frequency variations. The tap switch provides on/off control while rocker buttons allow precise adjustment. Compatible with LEDs, ELV/MLV transformers, and incandescent bulbs. Create multi-location installations by adding Maestro companion dimmers (HQD-RD) for control from additional locations. Includes a Front Accessible Service Switch (FASS) for safe light bulb replacement. Clear Connect Type A wireless technology provides reliable HomeWorks communication for seamless integration with the broader control system. Neutral optional for LED and incandescent loads. Neutral required for ELV and MLV. Wallplate sold separately.
- Phase-selectable technology provides compatibility with LED, ELV, MLV, incandescent, and halogen loads
- Controls up to 250W dimmable LED, 500W incandescent/halogen/ELV, or 400VA MLV loads
- RTISS technology actively compensates for line voltage and frequency variations to eliminate flicker
- Multi-location capable with Maestro companion dimmers (HQD-RD) for control from additional locations
- Available in a variety of gloss and satin finishes to match any décor with Claro wallplates and accessories
- Clear Connect Type A wireless technology ensures reliable HomeWorks communication for seamless integration and system-level control
- 10 year warranty with product registration
One Dimmer
Coordinating Wall plate sold seperately
None
- No neutral wire required
Specifications & Documents
General Specifications
Color/Finish
Metal Stainless Steel
Style & Type
Decorator/Rocker
Tap Switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-Wall
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 year warranty with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150 W LED
600 W incandescent/halogen
400 VA MLV
