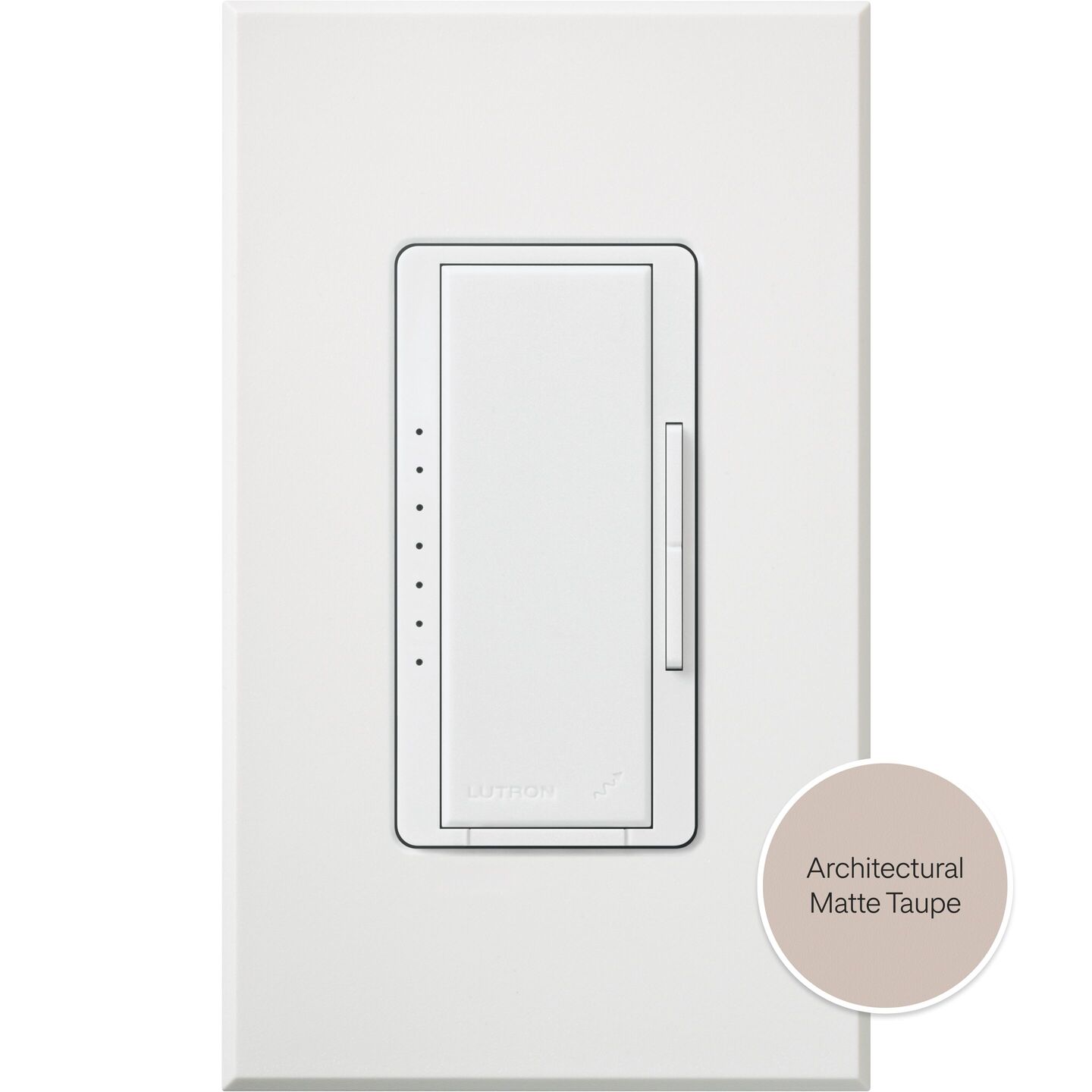

HomeWorks Maestro PRO LED+ Dimmer
Model # HQRA-PRO-TP
Control diverse lighting loads in HomeWorks systems with phase-selectable dimming to optimize performance for LED, ELV, MLV, and incandescent applications.
Availability varies by country.
Configure
Model # HQRA-PRO-TP
Product Details
Overview
The Maestro PRO LED+ dimmer brings system-level control to individual lighting circuits through HomeWorks integration. Featuring an Architectural style with square corners and matte and metal finishes, this dimmer coordinates seamlessly with other Architectural controls throughout the home. Phase-selectable technology provides broad compatibility with high-efficiency lighting, automatically selecting optimal control method based on wiring configuration. Real-Time Illumination Stability Systems (RTISS) technology reduces flicker by compensating in real-time for incoming line voltage and frequency variations. The tap switch provides on/off control while rocker buttons allow precise adjustment. Compatible with LEDs, ELV/MLV transformers, and incandescent bulbs. Create multi-location installations by adding Maestro companion dimmers (HQA-RD) for control from additional locations. Includes a Front Accessible Service Switch (FASS) for safe light bulb replacement. Clear Connect Type A wireless technology provides reliable HomeWorks communication for seamless integration with the broader control system. Neutral optional for LED and incandescent loads. Neutral required for ELV and MLV. Wallplate sold separately.
- Phase-selectable technology provides compatibility with LED, ELV, MLV, incandescent, and halogen loads
- Controls up to 250W dimmable LED, 500W incandescent/halogen/ELV, or 400VA MLV loads
- RTISS technology actively compensates for line voltage and frequency variations to eliminate flicker
- Multi-location capable with Maestro companion dimmers (HQA-RD) for control from additional locations
- Available in a variety of matte and metal finishes to match any décor with wallplates and accessories
- Clear Connect Type A wireless technology ensures reliable HomeWorks communication for seamless integration and system-level control
- 10 year warranty with product registration
One Dimmer
Coordinating Wall plate sold seperately
None
- No neutral wire required
Specifications & Documents
General Specifications
Color/Finish
Architectural Matte Taupe
Style & Type
Decorator/Rocker
Tap Switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-Wall
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 year warranty with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
250 W LED
500 incandescent/halogen
400 VA MLV
