Diva LED+ Pro Dimmer
Model # DV-PS-WH
Bring professional phase-selectable dimming to standard lighting loads in the classic Diva paddle design.
Availability varies by country.
Configure
Model # DV-PS-WH
Product Details
Overview
The LED+ Pro model of the Diva dimmer brings phase-selectable flexibility to typical lower-wattage lighting installations, with full LED, ELV, MLV, incandescent, and halogen compatibility in the classic paddle design of the Diva family. Phase-selectable technology supports optimal performance across load types, from dimmable LED downlights, to ELV tape lights, to MLV track and accent fixtures. The captive backlit slider doubles as a soft-glow light bar that displays the current light level and helps locate the dimmer in the dark, while Advanced Programming Mode customizes high-end trim, low-end trim, light bar on/off, and phase selection between forward and reverse. Pair with up to nine ST-AS accessory switches for multi-location control from up to ten locations. Available in gloss white, with neutral wire optional for LED and incandescent/halogen loads and required for ELV and MLV operation.
- Phase-selectable technology provides compatibility with LED, ELV, MLV, incandescent, and halogen loads
- Controls up to 150W LED, 300W ELV, 250VA MLV, or 300W incandescent/halogen with professional performance
- Installs in just 15 minutes using existing wiring, with neutral wire optional for LED and incandescent/halogen loads

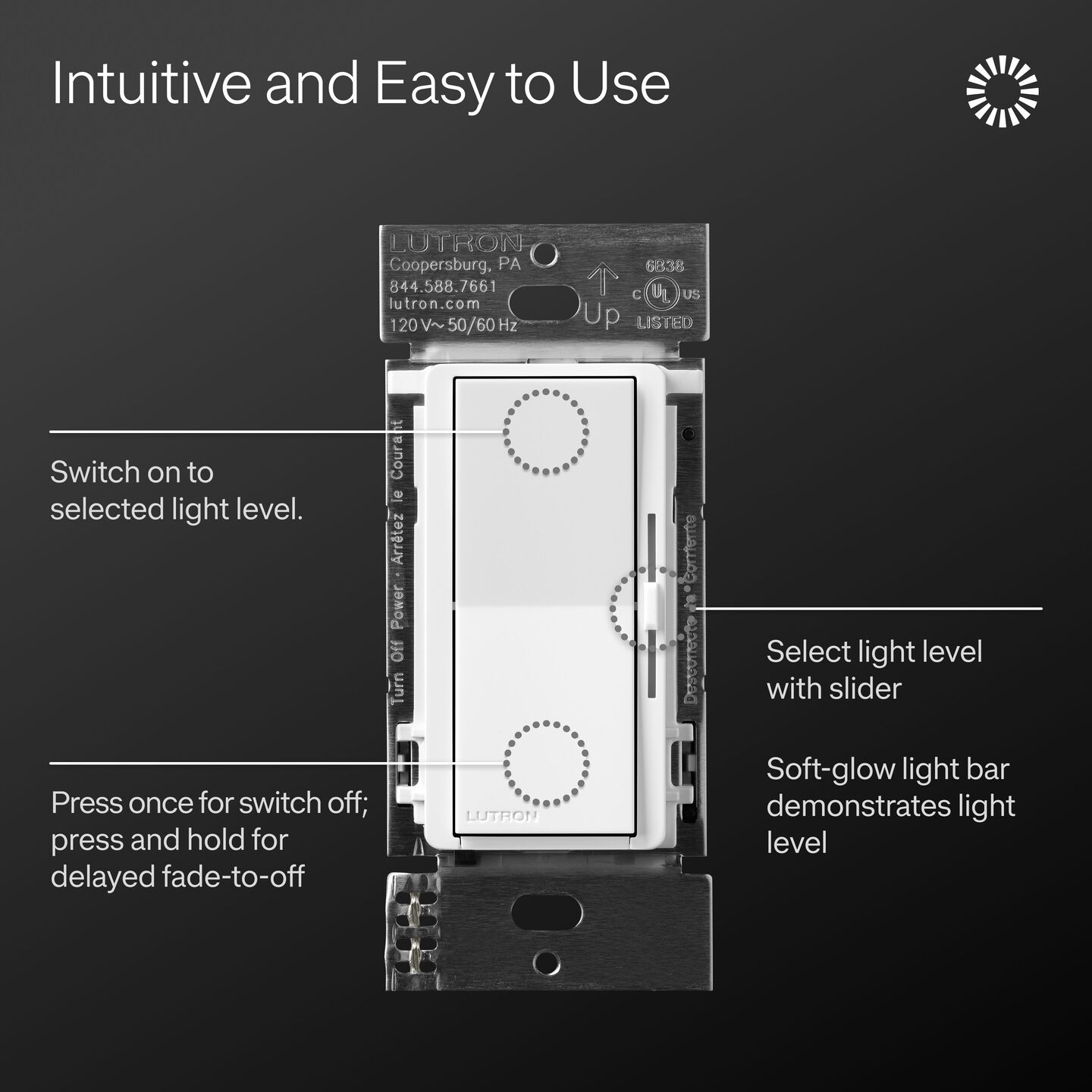

- Paddle switch and soft-glow light bar deliver precise control with at-a-glance light level visibility, plus press and hold for 30-second delayed fade-to-off
- Tested across thousands of bulbs from dozens of manufacturers to deliver smooth, flicker-free and buzz-free dimming across every supported load type
- Advanced Programming Mode customizes high-end trim, low-end trim, light bar on/off, and phase selection between forward and reverse
- 10 year warranty with product registration (5 year warranty without registration)
One Pro Dimmer
Coordinating Claro wall plate sold seperately
DV-PSR-WH
DV-PSR-WH-C
- Neutral wire is optional for LED and incandescent/halogen loads and required for ELV and MLV operation
- Single pole/3-way
- For a light controlled from more than one location, use one dimmer with a mechanical switch
- Simple installation in as little as 15 minutes with existing wiring
Specifications & Documents
General Specifications
Color/Finish
Gloss White
Style & Type
Paddle switch
Slide dimmer
Overall Dimensions
4.1 in x 2.1 in x 2.1 in (h x w x d)
Wiring Type
Single Pole / 3 Way
Wiring Requirements
Neutral wire is optional for LED and incandescent/halogen loads and required for ELV and MLV operation
Indoor / Outdoor
Indoor
Warranty
10 year limited warranty with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
Up to 150W LED, 300W ELV, 250VA MLV, 300W INC/HAL
